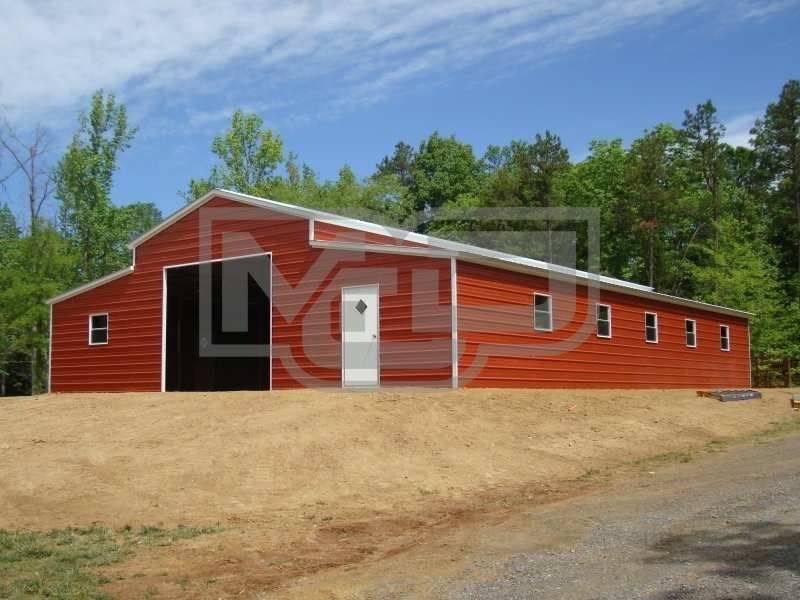

44' Wide x 41' Long x 12' High Raised Center Aisle Barn with Vertical Roof System (Best).
For additional information, click on the Specification tab, Site Requirements tab, Order and Delivery Process tab, or Available Colors tab above this text.
For detailed information and the benefits of each of our our roof systems, please check out our roof systems page.
As a General Rule, these wind/snow load rating options available for each state. Check with you local permitting office for their specific requirements, if any.
Available in AL, AR, GA, IL, IN, KS, KY, LA, MS, MO, NC, OK, SC, TN, TX, VA, WV:
Non-Certified/Non-Rated Units for 12' Wide to 24' Wide Units
Engineer Certified for 140 MPH/30PSF for 12' Wide to 24' WideUnits
14 Gauge Engineer Certified 140 MPH/45 PSF for 26’ Wide to 30’ Wide Units
12 Gauge Engineer Certified for 140 MPH/45 PSF for 26’ Wide to 30’ Wide Units
Available in Florida:
14 Gauge Engineer Certified 150 MPH Wind for 12’ Wide to 30’ Wide Units
14 Gauge Engineer Certified 180 MPH Wind for 12’ Wide to 24’ Wide Units
12 Gauge Engineer Certified 150 MPH Wind for 12’ Wide to 24’ Wide Units
12 Gauge Engineer Certified 180 MPH Wind for 26’ Wide to 30’ Wide Units
Available in IN, MD, NJ, NY, OH, PA
14 Gauge Engineer Certified 105MPH/35 PSF for 12’ Wide to 24’ Wide Units
12 Gauge Engineer Certified 105 MPH/65 PSF for 12’ Wide to 24’ Wide Units
14 Gauge Engineer Certified 140 MPH/45 PSF for 26’ Wide to 30’ Wide Units
12 Gauge Engineer Certified 105 MPH/65 PSF for 26’ Wide to 30’ Wide Units
For best results, the installation site should be as level as possible. Here are some general guides:
Delivery and Installation are FREE as long as your site is level, has no obstructions, and it is within 70' of our installation crew's vehicle and trailer.
For Garage and Barns:
Installation crews can install all of the units on the ground (grass, dirt, gravel, crusher run, asphalt) and concrete pads. We can install units on a non-floating wood deck for an extra charge. Engineer certified units cannot be installed on a wood deck.
We DO NOT install units on floating boat docks. Sorry!
We can install units on a concrete wall for an extra charge. The wall height can be no greater than 3' tall. The total side height of unit can be no taller than 14'. Please call for pricing.
|Roof System||Vertical Roof/Best|
|Roof Panel Corrugated Ridge Orientation||Vertical (Ridge to Eave)|
|Unit Width Center||20'|
|Unit Width Left Lean-to||12'|
|Unit Width Right Lean-to||12'|
|Front End Center Unit||(1) 10' W x 10'H Garage Doors|
|Front End Center Unit||Closed with Horizontally Oriented Panels|
|Back End Center Unit||Closed with Horizontally Oriented Panels|
|Left Side Wall Center Unit||2' Horizontal Panel under Eave/Remainder of Side is Open|
|Right Side Wall Center Unit||2' Horizontal Panel under Eave/Remainder of Side is Open|
|Front End Left Lean-to||(1) Window|
|Front End Left Lean-to||Closed with Horizontally Oriented Panels|
|Back End Left Lean-to||Closed with Horizontally Oriented Panels|
|Left Lean-to Side Wall||(5) Windows|
|Left Lean-to Side Wall||Closed with Horizontally Oriented Panels|
|Front End Right Lean-to||(1) 36''W x 80''H Walk-in Door|
|Front End Right Lean-to||Closed with Horizontally Oriented Panels|
|Back End Right Lean-to||Closed with Horizontally Oriented Panels|
|Right Lean-to Side Wall||(5) Windows|
|Right Lean-to Side Wall||Closed with Horizontally Oriented Panels|
|Galvanzed Steel Frame Gauge and Size||14 Gauge 2½” x 2½”|
|Steel Panel Gauge||29 Gauge|
|Non-Certified Units||Straight Rebar (½” x 30”) on Ground/Asphalt Installations. Expansion Sleeve Anchors on Concrete.|
|Certified Units||(Optional Upgrade) Mobile Home Anchors for Ground Installations. Expansion Sleeve Anchors on Concrete.|
|Maximum Rating||None (Option to Add to Unit in Cart)|
Our ordering process is simple and straightforward. Whether you are purchasing your building online or you're working with one of our knowledgeable representatives, the process is essentially the same.
Once you have selected the building that you need, a down payment is required to get your order started. For orders under $1500.00, a down payment of 10% is required. For orders that are $1500 or more, a down payment of 12% is required. The down payment may be greater for large structures.
To expedite your order, payment can be accepted using VISA, MasterCard, Discover, American Express, and PayPal.
We can accept company or personal checks but those checks must clear, usually requiring 5-10 business days, before your order is processed
We can accept purchased orders and those should be submitted to us for approval.
There is a $30.00 fee for ALL orders that are cancelled within 5 days of placing your order. You will be refunded the balance of your down payment. After 5 days, your order has been placed into the production process and there will be no refund of your initial down payment. You will not be required to pay any additional fees at this point in the order process.
What Happens After I Place The Order?
Once you have placed your order, we will review your order to ensure it is correct and that it can be built to your specifications. We review your order:
Once the order has been reviewed by our staff, a digital copy of the order is e-mailed to you for review. We ask that you carefully review the order for accuracy. If it meets with your approval, click to sign the order digitally and confirm. A copy is saved in your e-mail and a copy is automatically returned to us. We forward your order to manufacturing at that point. For most orders over $1000.00, the a representative will contact you to ensure that you are ready for installation. This does not mean they are coming out immediately. It simply means that you are placed in line for the delivery. The estimated delivery time starts from the moment you are ready to take delivery. Your order will not be placed in line for manufacturing until your site is ready for installation.
When your order is ready to be installed, you will be contacted by a customer service representative. In most cases, you will be given your scheduled installation date one week in advance. The representative will give you an approximate time of day for delivery, usually morning or afternoon. The manufacturer will not give you an exact time of delivery because in most cases, there are multiple installations scheduled for the installation contractor. By batching multiple installations together, that keeps shipping costs lower, and ultimately, your cost lower. Installation contractors can transport up to eight units. Unless your order is $12,000 or more, there are other customers to be served on the contractor's delivery schedule. Factors such as weather, un-level installation site, and delays in a customer getting to their job site can and may delay the contractor to getting to your installation site in a timely manner. For the majority of installations, they go delay-free. Just be advised that installations can be delayed due to factors that are out of our control. We do everything in our power to ensure your installation is completed in a timely manner but keep in mind that this is construction and there is an occasional delay.
Once the building is installed, you will be required to pay the balance of the order. Then, you're ready to utilize and enjoy your new building provided by Cardinal Carports!
Traditionally, metal barns were used as equestrian shelters, livestock shelters, feed and equipment sheds, and other agricultural uses. Today, the barns that we provide are ideal for many other uses that require shelter or enclosed, secure storage. In addition to providing ample, shelter for farm or ag use, the units can be used as:
WHAT ARE MY OPTIONS
With the many options that we offer, such as the huge selection of building dimensions, our three roof designs, 13 color choices, several end wall and side wall options, numerous garage door sizes, windows, and personnel doors, it is easy to personalize your metal barn to suit your application and to get the appearance that you want. Our metal barn packages can be totally open, partially encloses, or fully enclosed and can include garage doors, walk-in doors, and windows. We also offer insulation for the roof or for the entire building. Our metal garages and workshops can be installed ground, gravel, asphalt, or concrete. We have many more options from which to choose!
HOW DO WE DO IT
Our company works directly with numerous metal and steel barn manufacturers throughout the United States to provide you with a top quality unit that the best possible price. With more than 20 years of experience in the industry, our team knows the product, the manufacturer, and the area in which you live so well that we can provide you with the product that you need, at the best value, while providing remarkable service and customer satisfaction! With our outstanding quality, price, warranty, and options, it is easy to understand why we are a top choice for consumers!
Metal Carports Direct is known for providing top quality carports, enclosed metal garages, steel buildings, and metal barns at the best value. Our mission is to provide our customers all of the information that they need to make the most informed buying decision possible. Our team will work with you to determine your exact need and provide you with various options so that you can choose the best one that works for you.
WHAT IS THE NEXT STEP?
That is the easy part! Once we have all of the information that we need to build your metal barn or steel barn, we will provide you with the exact cost of the unit, delivered and installed on your site. The only thing that we require is that you look over your order to ensure that we have every detail as you need it. If so, you will sign off on the order, pay a small down payment to get the order started, and we take care of the rest. It is really that easy! We look forward to serving you!
